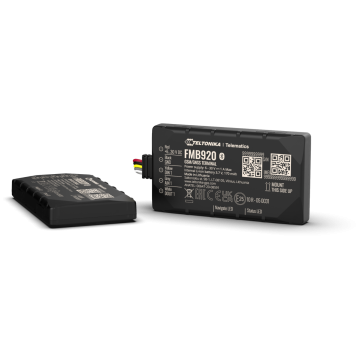

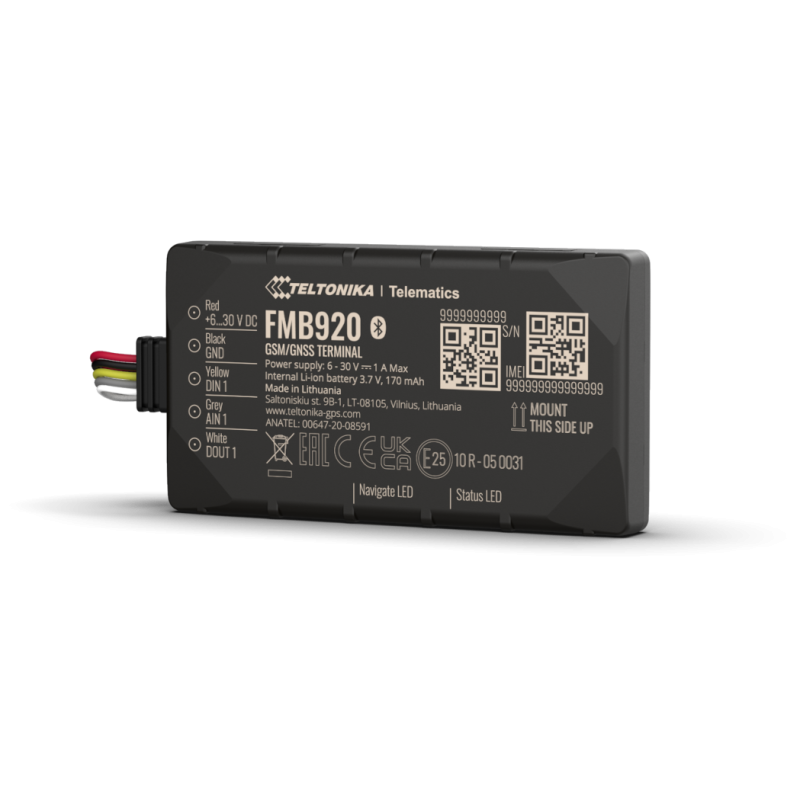

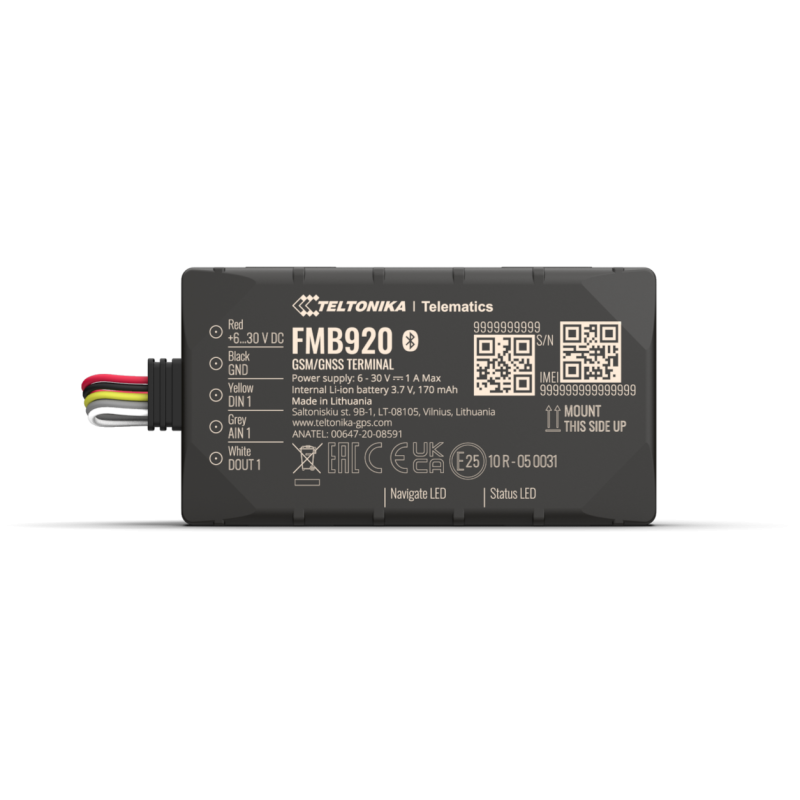

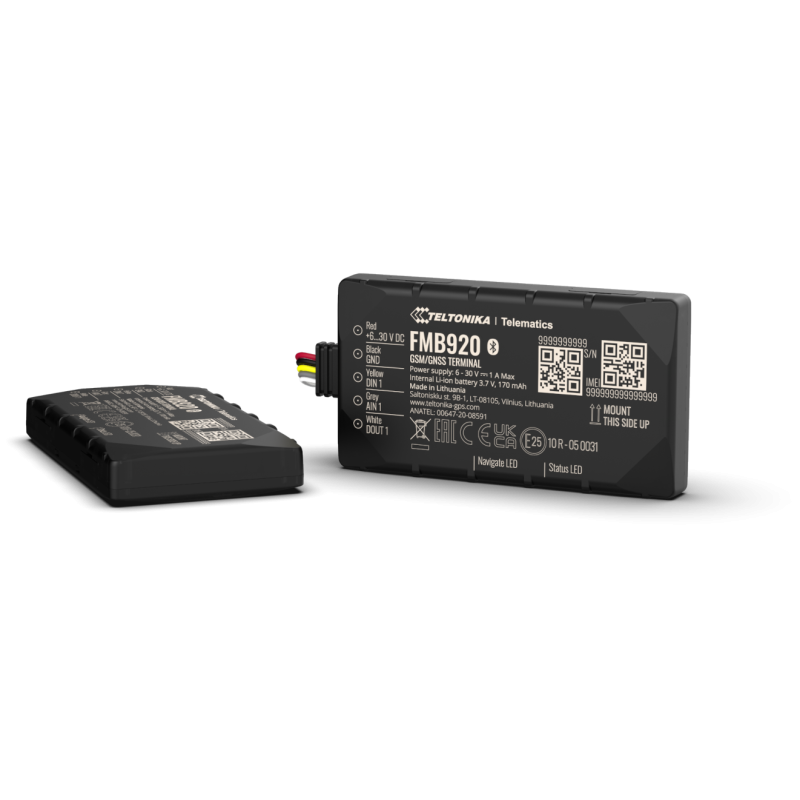

Teltonika FMB920 is a small and smart tracker with Bluetooth connectivity, internal High Gain GNSS and GSM antennas and an integrated backup battery. The model is compact, reliable, accurate and enduring. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios with temperature, humidity, liquid level monitoring and many more. All of that brings unquestionable value to numerous market segments and societies, countries’ budgets and the global economy overall. It can be perfectly adapted to any fleet and any transportation. Its is a perfect choice for basic track & trace and fleet management.
Eco driving scenario for all-round better driving
Achieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario.
Slim design to fit the tightest spaces
12 mm-height device can be easily fitted in the tightest spaces.
Extensive remote monitoring possibilities
Blocking engine remotely among the numerous available fleet control measures.
Extended product usage scenarios
Bluetooth LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement.
PRODUCT SPECIFICATIONS
Module
|
Name
|
Teltonika TM2500
|
|
Technology
|
GSM/GPRS/GNSS/BLUETOOTH LE
|
GNSS
|
GNSS
|
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
|
|
Receiver
|
33 channel
|
|
Tracking sensitivity
|
-165 dBM
|
|
Position accuracy
|
< 2.5 CEP
|
|
Velocity accuracy
|
< 0.1m/s (within +/- 15% error)
|
|
Hot start
|
< 1 s
|
|
Warm start
|
< 25 s
|
|
Cold start
|
< 35 s
|
Cellular
|
Technology
|
GSM
|
|
2G bands
|
Quad-band 850 / 900 / 1800 / 1900 MHz
|
|
Data transfer
|
GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
|
|
Data support
|
SMS (text/data)
|
Power
|
Input voltage range
|
6 - 30 V DC with overvoltage protection
|
|
Back-up battery
|
170 mAh Li-Ion battery (0.63 Wh)
|
Bluetooth technology
|
Specification
|
4.0 + LE
|
|
Supported peripherals
|
EYE beacon and sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Bluetooth LE beacons and sensors support
|
Physical specification
|
Dimensions
|
79 x 43 x 12 mm (L x W x H)
|
|
Weight
|
54 g
|
Interface
|
Digital Inputs
|
1
|
|
Digital Outputs
|
1
|
|
Analog Inputs
|
1
|
|
GNSS antenna
|
Internal High Gain
|
|
Cellular antenna
|
Internal High Gain
|
|
USB
|
2.0 Micro-USB
|
|
LED indication
|
2 status LED lights
|
|
SIM
|
Micro-SIM
|
|
Memory
|
128MB internal flash memory
|
Operating environment
|
Operating temperature (without battery)
|
-40 °C to +85 °C
|
|
Storage temperature (without battery)
|
-40 °C to +85 °C
|
|
Operating humidity
|
5% to 95% non-condensing
|
|
Ingress Protection Rating
|
IP54
|
|
Battery charge temperature
|
0 °C to +45 °C
|
|
Battery discharge temperature
|
20 °C to +60 °C
|
|
Battery storage temperature
|
-20 °C to +35 °C for 1 month
-20 °C to +30 °C for 6 months
|
Features
|
Sensors
|
Accelerometer
|
|
Scenarios
|
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
|
|
Sleep modes
|
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
|
|
Configuration and firmware update
|
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth wireless technology), FMBT mobile application (Configuration)
|
|
SMS
|
Configuration, Events, DOUT control, Debug
|
|
GPRS commands
|
Configuration, DOUT control, Debug
|
|
Time Synchronization
|
GPS, NITZ, NTP
|
|
Fuel monitoring
|
LLS (Analog), OBDII dongle
|
|
Ignition detection
|
Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
|
Certification & Approvals
|
Regulatory
|
Anatel, CE/RED, E-Mark, EAC, ICASA, NTC, REACH, RoHS, SDPPI (POSTEL), SIRIM QAS
|
