On Sale while supplies last.
Dual LTE Cat 6 Industrial Cellular Router
Dual LTE: cellular speeds up to 600Mbps with dual simultaneous LTE Cat 6 connections
Dual SIM: instant failover switching
WIFI & BT: Wave-2 802.11ac Dual Band WIFI and Bluetooth LE
GNSS: Global Navigation Satellite System for location services and time synchronization
Load balancing: allows to use multiple WAN sources to increase throughput
RMS: compatible with Teltonika Remote Management System
The given price is suggested manufacturer′s retail price excluding tax. Send inquiry for the best offer.

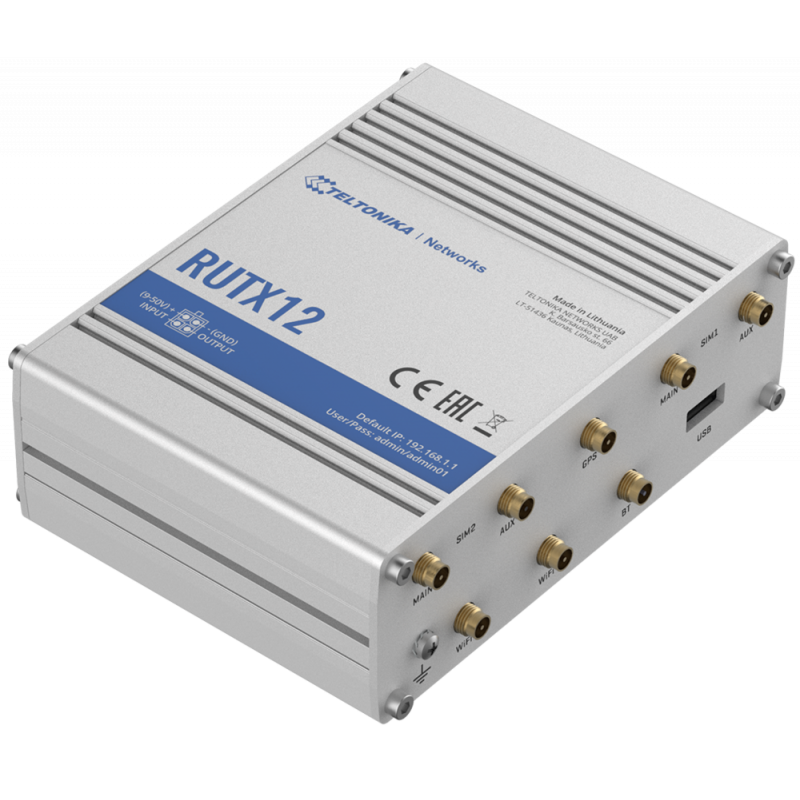

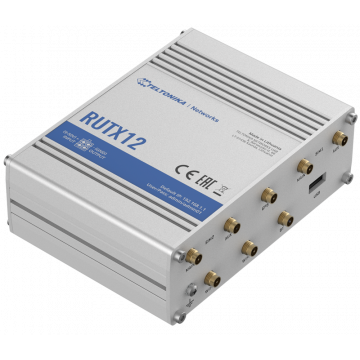

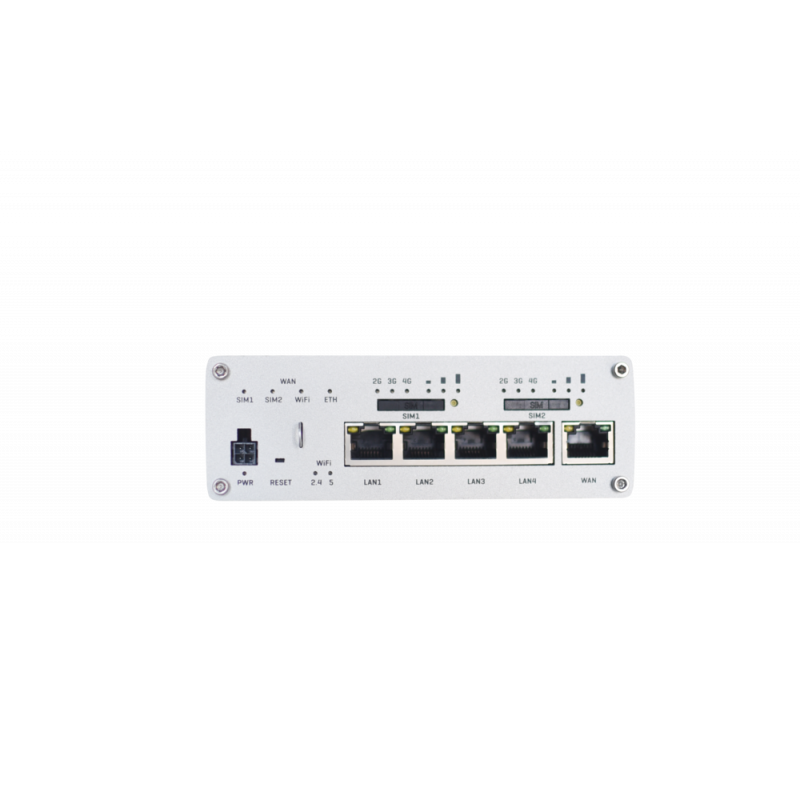

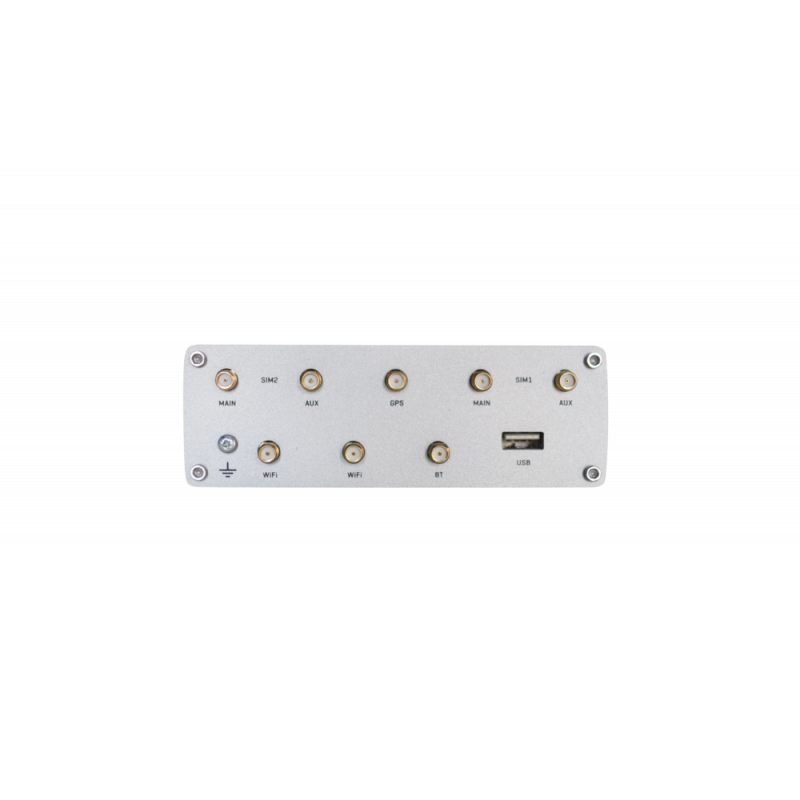

RUTX12 is the most powerful Dual LTE Cat 6 router in our portfolio. Two simultaneously operational LTE Cat 6 modems provide speeds up to 600 Mbps with load balancing feature. 5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, and USB interfaces and dual SIM make this device irreplaceable in applications where losing connection is not an option. Packed with advanced security features like VPN, IPsec, PPTP, L2TP, Stunnel and GNSS tracking. The device offers a wide range of supported power supply voltages (9-50 V) and operating temperatures (-40°C ~ +75°C).
Standard package contains
- RUTX12 Router
- 24W PSU
- 4 x LTE antennas (swivel, SMA male)
- 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
- 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
- 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- RMS Flyer
- Packaging box
Full technical specification is available in Attachments.
