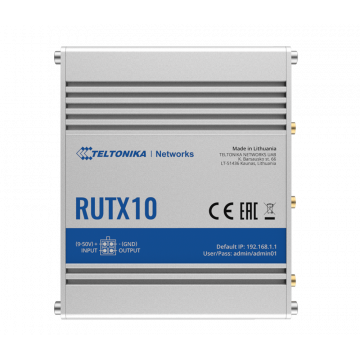

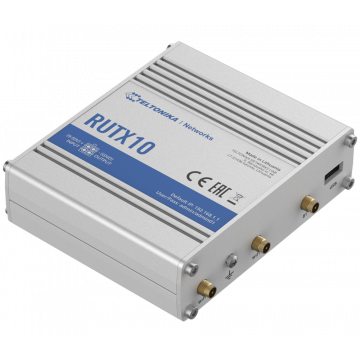

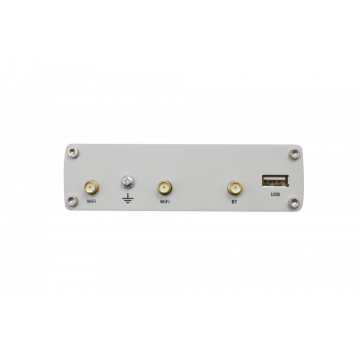

RUTX10 Router

859.00 zł

Professional Ethernet Router
Gigabit Ethernet: 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
I/O and USB: digital Input / Output for remote monitoring and control and USB 2.0 interface
WIFI and BT: Wave-2 802.11ac Dual Band WIFI and Bluetooth LE
Protocols: multiple protocols supported including MQTT, Modbus TCP, BGP, GRE
Security: firewall and numerous vpn services including OpenVPN, Ipsec, PPTP, L2TP i DMVPN
RMS: compatible with Teltonika Remote Management System

The given price is suggested manufacturer′s retail price excluding tax. Send inquiry for the best offer.

We created RUTX10 Enterprise router specially for small to mid-size office applications. It comes with Dual Band Wi-Fi 5 802.11ac, which is very suitable for high data transmission and robust wireless performance. It has all the latest security features and allows remote monitoring and control. RUTX10 comes with highly functional & customizable RutOS based on OpenWRT. Synergy between hardware and software makes this device an amazing performer in Enterprise solutions. The device offers a wide range of supported power supply voltages (9-50 V) and operating temperatures (-40°C ~ +75°C).

Standard package contains
- RUTX10 Router
- 18 W PSU
- 2 x WiFi antennas (swivel, RP-SMA male)
- 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
- Ethernet cable (1.5 m)
- QSG (Quick Start Guide)
- RMS Flyer
- Packaging box

Full technical specification is available in Attachments.

Data sheet

WiFi standard: IEEE 802.11b/g/n/ac Wave 2
Ethernet ports: 4
Ethernet speed: 10/100/1000 Mbps
VPN: IPsec
OpenVPN
WireGuard
Operating system: RutOS (OpenWrt based Linux OS)
Operating voltage: 9-50 VDC
Power consumption Max: 9 W
USB ports: 1
Digital inputs: 1
Digital outputs: 1
Dimensions: 115 x 32,2 x 95,2 mm
Weight: 355 g
Mounting options: DIN rail
flat surface
wall
Operating temperature: -40°C ~ +75°C
IP degree of protection: IP30

Download

Datasheet RUTX10

Download (978.3KB)

Flyer RUTX10

Download (1.76MB)

Quick Start Guide RUTX10

Download (248.78KB)
