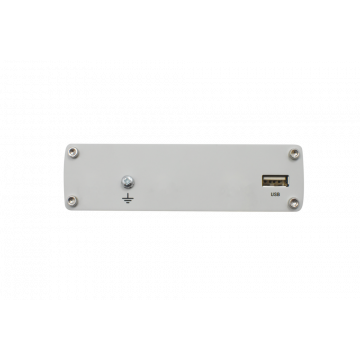

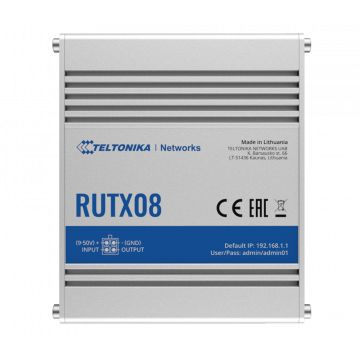

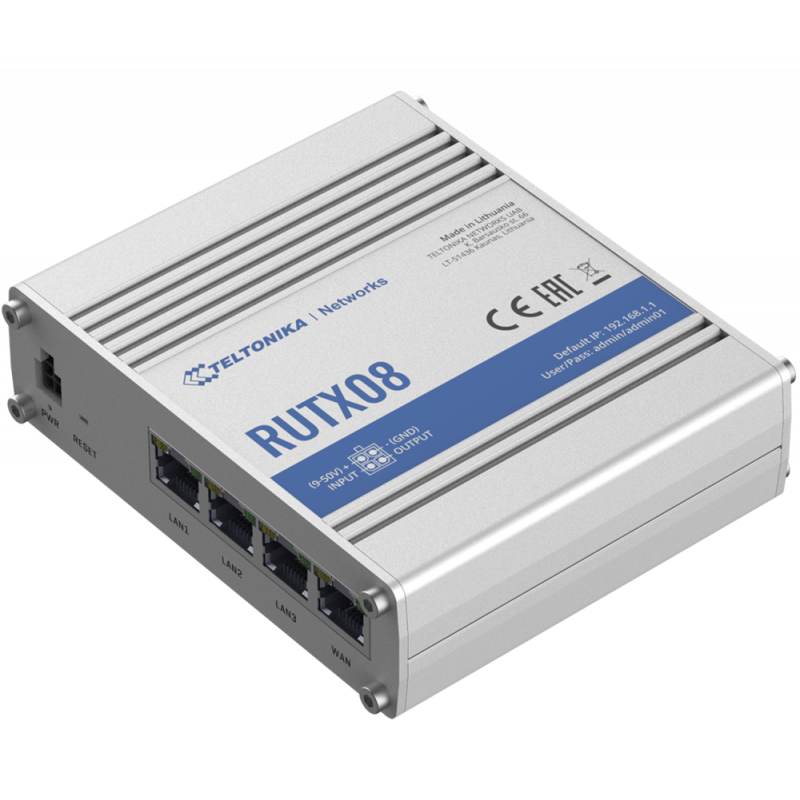

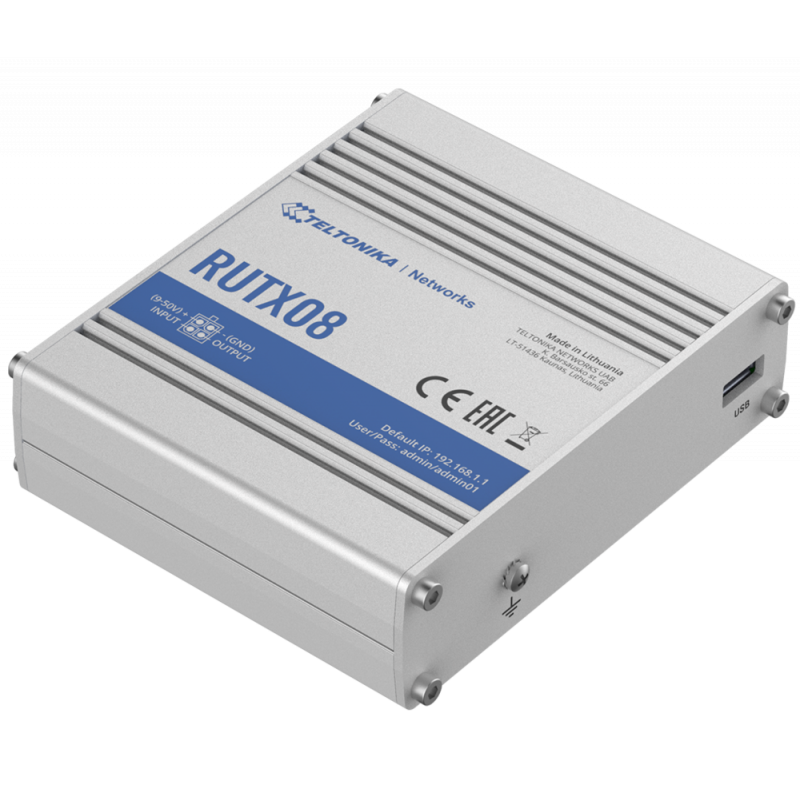

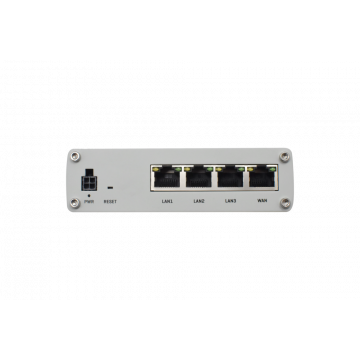

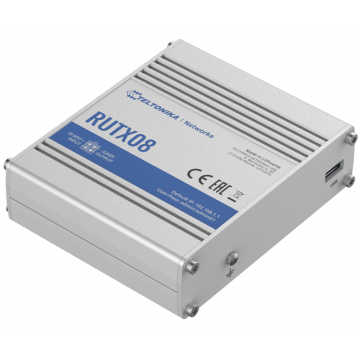

RUTX08 Router

655.00 zł

Industrial Ethernet Router
Gigabit Ethernet: 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
I/O and USB: digital Input / Output for remote monitoring and control and USB 2.0 interface
9-50 V: this router supports a wide range of power supply voltage for versatile integration
Protocols: multiple protocols supported including MQTT, Modbus TCP, BGP, GRE
Security: firewall and numerous vpn services including OpenVPN, Ipsec, PPTP, L2TP i DMVPN
RMS: compatible with Teltonika Remote Management System

The given price is suggested manufacturer′s retail price excluding tax. Send inquiry for the best offer.

RUTX08 is a durable and powerful Ethernet-to-Ethernet industrial VPN router that runs on RutOS - an advanced OpenWRT based operating system. It has four Gigabit Ethernet ports with speeds up to 1000 Mbps. A rugged aluminum housing and industrial networking protocol support make RUTX08 a perfect choice for professional applications. These powerful specifications combined with RutOS software features, such as multiple supported VPN services, advanced Firewall, and Remote Management System (RMS) make this device a superb performer, where no cellular or Wi-Fi connectivity is required. The device offers a wide range of supported power supply voltages (9-50 V) and operating temperatures (-40°C ~ +75°C).

Standard package contains
- RUTX08 Router
- 18 W PSU
- Ethernet cable (1.5 m)
- QSG (Quick Start Guide)
- RMS Flyer
- Packaging box

Full technical specification is available in Attachments.

Data sheet

Ethernet ports: 4
Ethernet speed: 10/100/1000 Mbps
VPN: IPsec
OpenVPN
WireGuard
Operating system: RutOS (OpenWrt based Linux OS)
Operating voltage: 9-50 VDC
Power consumption Max: 6 W
USB ports: 1
Digital inputs: 1
Digital outputs: 1
Dimensions: 115 x 32,2 x 95,2 mm
Weight: 345 g
Mounting options: DIN rail
flat surface
wall
Operating temperature: -40°C ~ +75°C
IP degree of protection: IP30

Download

Datasheet RUTX08

Download (956.38KB)

Flyer RUTX08

Download (1.76MB)

Quick Start Guide RUTX08

Download (243.76KB)
