Ask for price
5G Powerhouse Router with Wi-Fi 6
5G - Ultra-high cellular speeds of up to 3.4 Gbps
Wi-Fi 6 - Dual-band multi-user MIMO for superior wireless performance
Processing power - 1 GB RAM and 8 GB flash for edge computing applications
eSIM - Global, touch-free deployments
The given price is suggested manufacturer′s retail price excluding tax. Send inquiry for the best offer.

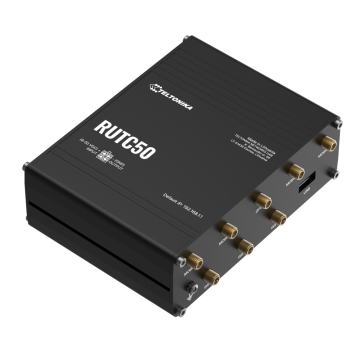

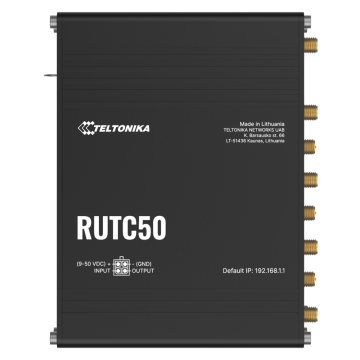

Unleash the full potential of your edge applications with the RUTC50 5G router. This compact powerhouse combines ultra-fast 5G (up to 3.4 Gbps), dual-band Wi-Fi 6, and enhanced processing power with 1GB RAM and 8GB flash memory. Featuring dual SIM and eSIM for global, touch-free deployments, the RUTC50 delivers lightning-fast, low-latency communication for mission-critical operations. Rugged, powerful, and future-ready.
KEY FEATURES
Hardware
| Mobile | 5G Sub-6 Ghz SA/NSA 2.4/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) - LTE Cat 19 1.6 Gbps DL, Cat 18 200 Mbps UL; 3G - 42 Mbps DL, 5.76 Mbps UL |
| CPU | Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53 |
| RAM | 1GB, DDR4 |
| Storage | 16MB serial NOR flash, 8GB eMMC |
| TPM | Identification and authentication module, TPM 2.0 standard |

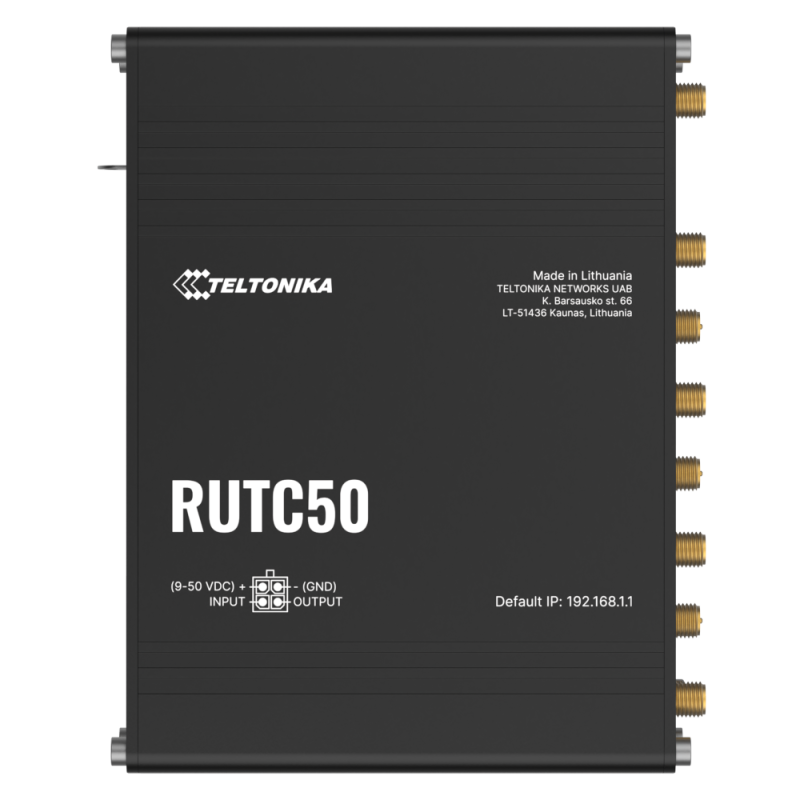

| Powering options | 4-pin industrial DC power socket, 9 - 50 VDC |
| eSIM | Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
| Antenna connectors | 4 x SMA for Mobile, 3 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |

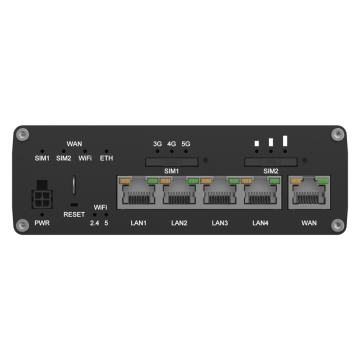

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps: 1 x WAN (configurable as LAN), 4 x LAN |
| Wi-Fi | 802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402 Mbps on 5 GHz, 576 Mbps on 2.4GHz (Dual Band, MU-MIMO) |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Inputs/Outputs |
1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high, 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA |
| Grounding | 1 x Grounding screw |
| Status LEDs | 4 x WAN status, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x LAN status, 1 x Power, 2 x 2.4 GHz and 5 GHz Wi-Fi |
| Operating temperature | 40 °C to 75 °C |
| Housing | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 130.4 x 42.6 x 103.4 mm |
| Weight | 452 g |
Software
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | eSIM, SIM switch, Status, SMS, USSD, Block/Allow list, Multiple PDN, Band management, SIM idle protection service, SIM PIN code management, APN, Bridge, Passthrough, Framed routing |
| Wireless features | Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless Connectivity Features, Wireless MAC filter, Wireless QR code generator, TravelMate |
| Network features | Routing, Network protocols, VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, Hotspot, Hotspot 2.0, SSHFS, VRF support, Traffic Management, Port Mirroring |
| Security | Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, TPM, SSL certificate generation, 802.1x |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| Monitoring and management | WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS |
| Cloud solutions | RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub |
| Services | OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS/COSEM |
| Location tracking | GNSS, Coordinates, NMEA, NTRIP, Server software, Geofencing |
