Industrial Cellular Router
Connectivity - 4G/LTE (Cat 4), 3G, 2G
Wi-Fi - Wireless Access Point with Hotspot functionality
WAN failover - Automatic switching to available Backup connection
RMS - For remote management, access & VPN services
The given price is suggested manufacturer′s retail price excluding tax. Send inquiry for the best offer.

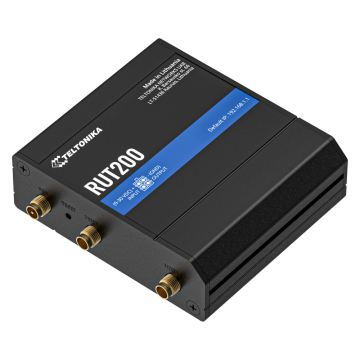

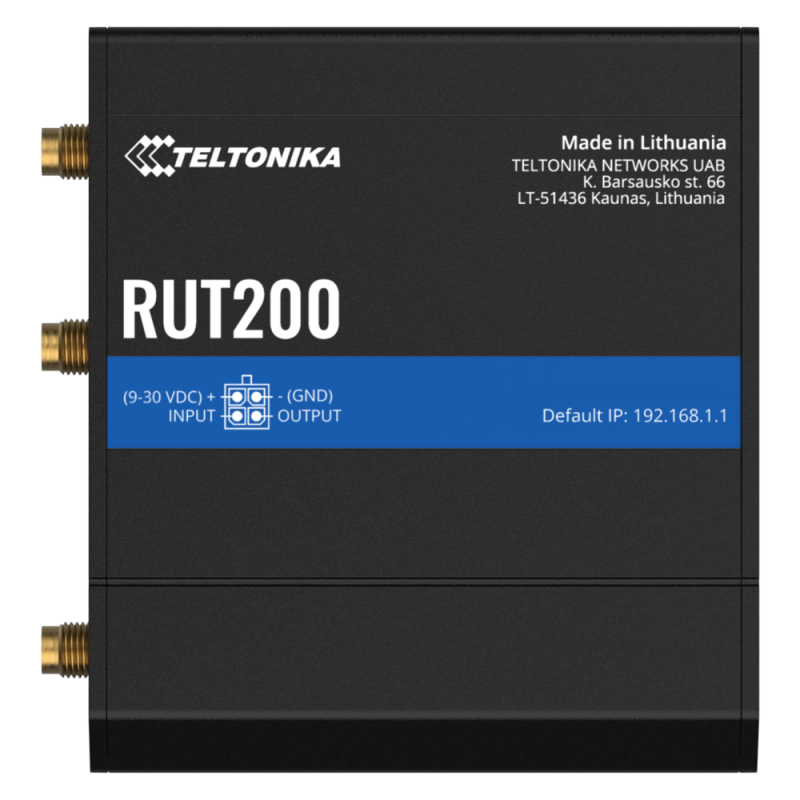

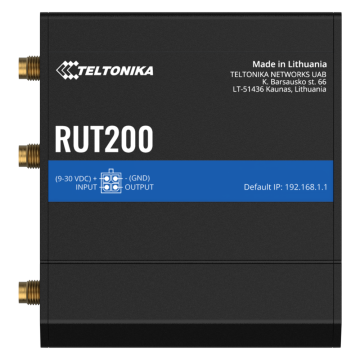

RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity with remote management capabilities.
KEY FEATURES
Hardware
| Mobile | 4G/LTE (Cat 4), 3G, 2G |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| Storage | 16 MB Flash |
| Memory | 128 MB RAM |
| Powering option | 4-pin power socket, 9-30 VDC |
| SIM | 1 x External SIM holder (2FF) |

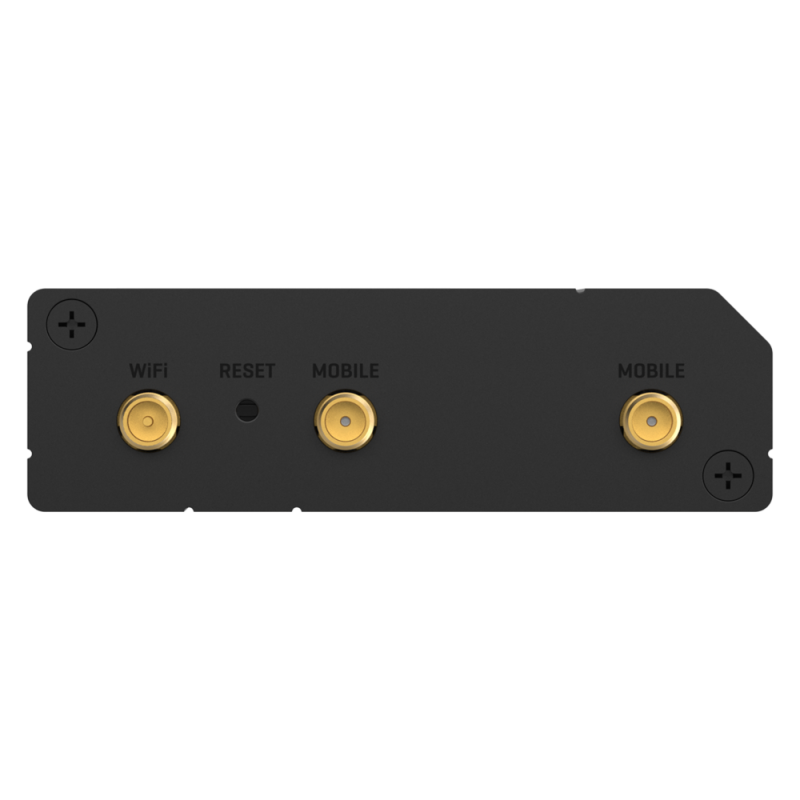

| Antenna connectors | 2 x SMA for mobile, 1 x RP-SMA for WiFi |
| Ethernet | 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN |
| WiFi | IEEE 802.11b/g/n, Access point (AP), Station (STA) |
| Inputs/Outputs | On 4-pin socket: 1 x Digital input, 1 x Digital open collector output |
| Status LEDs | 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with DIN rail mounting option, plastic panels |
| Dimensions (W x H x D) | 83 x 25 x 74 mm |
| Weight | 125 g |
Software
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | Auto APN, Band lock |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
| Network | Failover (Network backup), VLAN, QoS, Load Balancing |
| Security | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard |
| Monitoring and Management | WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS |
| Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| SMS features | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging |
Standard package
