Ask for price

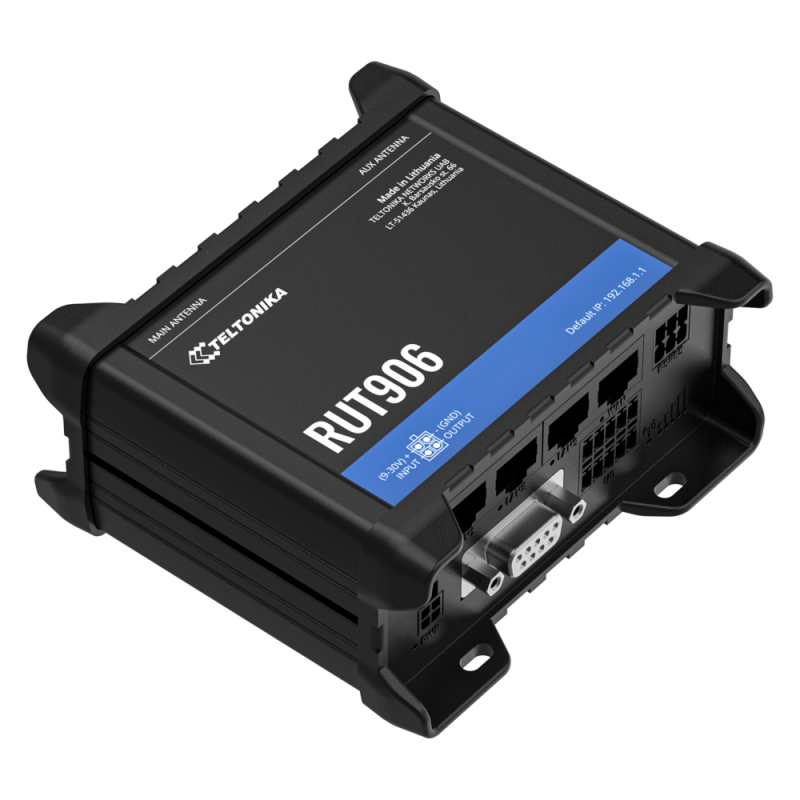

4G/LTE RS232/RS485 Industrial Router
Connectivity - 4G/LTE (Cat 4), 3G, 2G
Dual SIM - Auto-failover, backup WAN, and more switching scenarios
Interfaces & protocols - Serial interfaces (RS232 & RS485), MQTT, BACnet, OPC UA, I/Os, Ethernet, and more
GNSS - NTRIP, location services and time synchronization
The given price is suggested manufacturer′s retail price excluding tax. Send inquiry for the best offer.
Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.
KEY FEATURES
Hardware
| Mobile | 4G (LTE) - Cat 4 up to 150 Mbps, 3G - Up to 42 Mbps, 2G - Up to 236.8 kbps |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| Memory | 128 MB, DDR2 |
| Storage | 16 MB, SPI Flash |
| Powering options | 4-pin industrial DC power socket, 9 - 30 VDC |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) |
| SD Card | Micro SD (internal) |
| Antenna connectors | 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| Ethernet | 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN |
| Wi-Fi | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Inputs/Outputs | 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector |
| Serial | 1 x RS232, 1 x RS485 |
| Other | 1 x USB host |
| Status LEDs | 1 x bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing, plastic panels |
| Dimensions (W x H x D) | 109.5 x 50 x 100 mm |
| Weight | 295 g |
Software
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits |
| Network features | Routing, Failover, Firewall, DHCP, DDNS, QoS / SQM, Load Balancing, VoIP passthrough, Connection monitoring, SSHFS |
| Monitoring and Management | WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, BACnet, DNP3, OPC UA, MODBUS, RMS |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, L2TPv3, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cumulocity - Cloud of Things, ThingWorx |
| Wireless Connectivity Features | Fast roaming (802.11r), Relayd |
| Hotspot | External/Internal Radius, SMS OTP, MAC authentication, Walled Garden |
| GNSS | NMEA forwarding, NTRIP, AVL, Geofencing |
Standard package
Data sheet
4G/LTE RS232/RS485 Industrial Router
Connectivity - 4G/LTE (Cat 4), 3G, 2G
Dual SIM - Auto-failover, backup WAN, and more switching scenarios
Interfaces & protocols - Serial interfaces (RS232 & RS485), MQTT, BACnet, OPC UA, I/Os, Ethernet, and more
GNSS - NTRIP, location services and time synchronization
