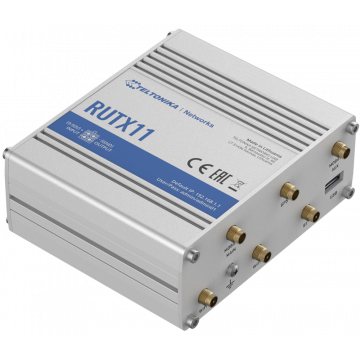

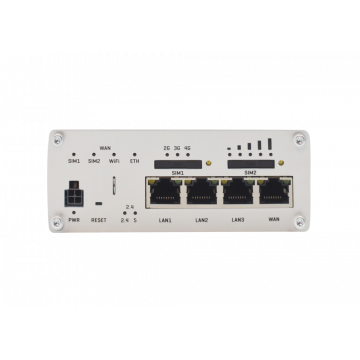

RUTX11 Router

1,630.00 zł

Industrial Cellular Router
4G LTE Cat 6: cellular speeds up to 300Mbps with Carrier Aggregation
Dual SIM: with auto failover, backup WAN and other switching scenarios
WIFI & BT: Wave-2 802.11ac Dual Band WIFI and Bluetooth LE
GNSS: Global Navigation Satellite System for location services and time synchronization
Protocols: multiple protocols supported including MQTT, Modbus TCP, BGP, GRE
RMS: compatible with Teltonika Remote Management System

help_outlineSend inquiry

The given price is suggested manufacturer′s retail price excluding tax. Send inquiry for the best offer.

RUTX11 is a very powerful device equipped with Dual-SIM with auto Failover, Backup WAN, and other SW features. A wide range of internal hardware interfaces allows this product to be used in power-hungry industrial applications where speed and robustness are at the heart of the solution. 4G LTE – Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows for a seamless data transfer experience with auto-failover and a backup WAN. Bluetooth LE allows sensors to be connected directly to the router, thus minimizing the overall solution ecosystem. The device offers a wide range of supported power supply voltages (9-50 V) and operating temperatures (-40°C ~ +75°C).

Standard package contains
- RUTX11 Router
- 18W PSU
- 2 x LTE antennas (swivel, SMA male)
- 2 x WiFi antennas (swivel, RP-SMA male)
- 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
- 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- RMS Flyer
- Packaging box

Full technical specification is available in Attachments.

Data sheet

Connectivity
3G
4G/LTE Cat 6
WiFi standard
IEEE 802.11b/g/n/ac Wave 2
Ethernet ports
4
Ethernet speed
10/100/1000 Mbps
VPN
IPsec
OpenVPN
WireGuard
GNSS
BeiDou
GLONASS
GPS
Galileo
QZSS
Operating system
RutOS (OpenWrt based Linux OS)
Operating voltage
9-50 VDC
Power consumption Max
16 W
USB ports
1
Digital inputs
1
Digital outputs
1
SIM slots
2
Dimensions
115 x 44,2 x 95,1 mm
Weight
456 g
Mounting options
DIN rail
flat surface
wall
Operating temperature
-40°C ~ +75°C
IP degree of protection
IP30

Download

Datasheet RUTX11

Download (1.62MB)

Flyer RUTX11

Download (1.79MB)

Quick Start Guide RUTX11

Download (269.28KB)
