On Sale while supplies last.

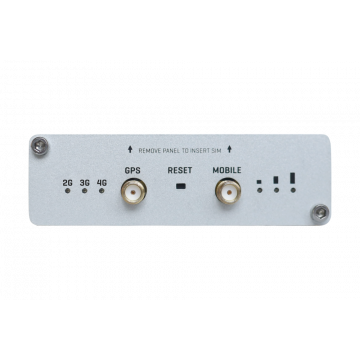

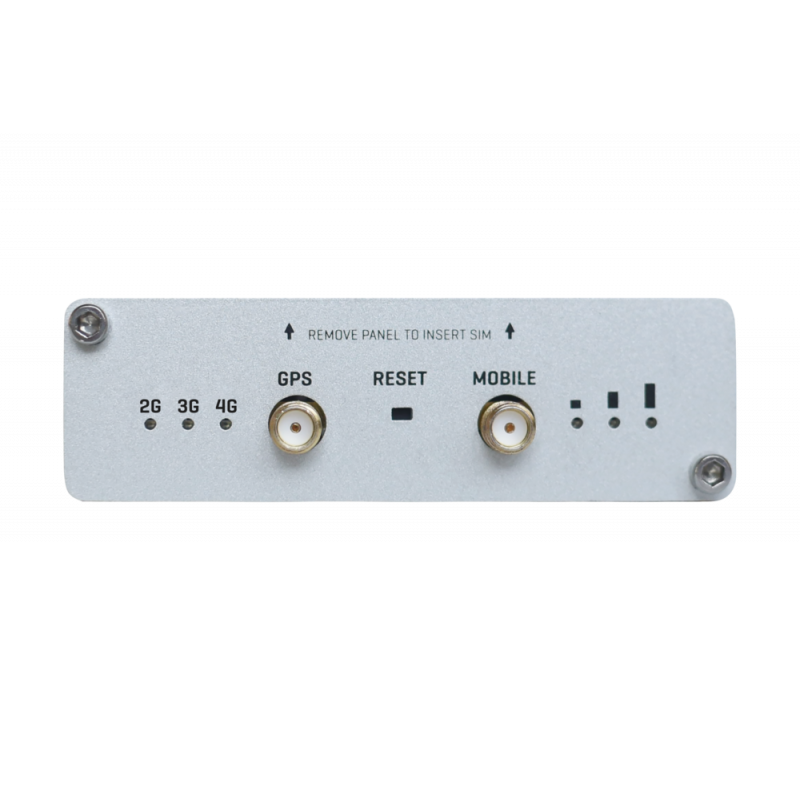

Industrial M2M LTE Gateway
Connectivity: 4G/LTE (Cat 4), 3G, 2G
Dual SIM: with auto failover, backup WAN and other switching scenarios
Serial ports: RS232/RS485 serial communication interfaces
9-30V: wide range of supported power supply voltages
I/O: multiple Inputs and Outputs for remote monitoring and control
GNSS: Global Navigation Satellite System for location services with geofencing functionality
The given price is suggested manufacturer′s retail price excluding tax. Send inquiry for the best offer.

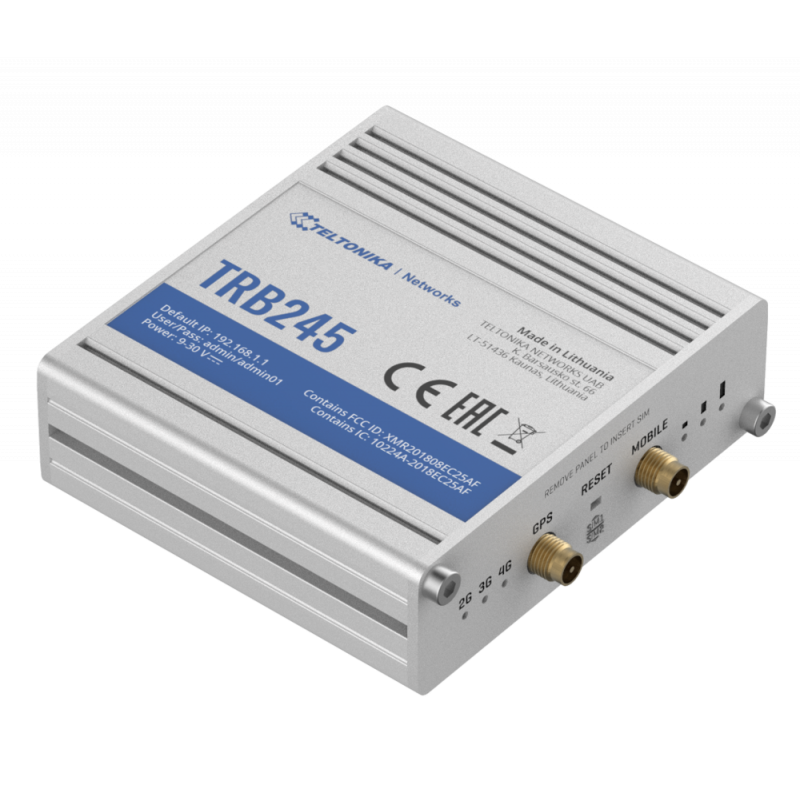

Industrial LTE Cat 4 gateway packs all essential features for any industry: fast and reliable internet connection, combination of Ethernet and serial communication, secure power connector, I/O ports, and time synchronization services. TRB245 can be used to integrate modern and legacy industrial equipment in one solution via RS232 or RS485 interfaces. A wide range of software features like SMS control, Firewall, OpenVPN, IPSec, RMS ensures that data can be reached securely. Dual SIM functionality with auto-failover and a backup WAN ensure stable connectivity even if the primary connection is lost. The device offers a wide range of supported power supply voltages (9-30 V) and operating temperatures (-40°C ~ +75°C).
Standard package contains
- TRB245 Gateway
- 9 W PSU
- 1 x LTE antenna (swivel, SMA male)
- 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
- 16 pin terminal block
- 1 x hex key
- Ethernet cable (1.5 m)
- QSG (Quick start guide)
- RMS Flyer
- Packaging box
Full technical specification is available in Attachments.
Data sheet
On Sale while supplies last.
Industrial M2M LTE Gateway
Connectivity: 4G/LTE (Cat 4), 3G, 2G
Dual SIM: with auto failover, backup WAN and other switching scenarios
Serial ports: RS232/RS485 serial communication interfaces
9-30V: wide range of supported power supply voltages
I/O: multiple Inputs and Outputs for remote monitoring and control
GNSS: Global Navigation Satellite System for location services with geofencing functionality
